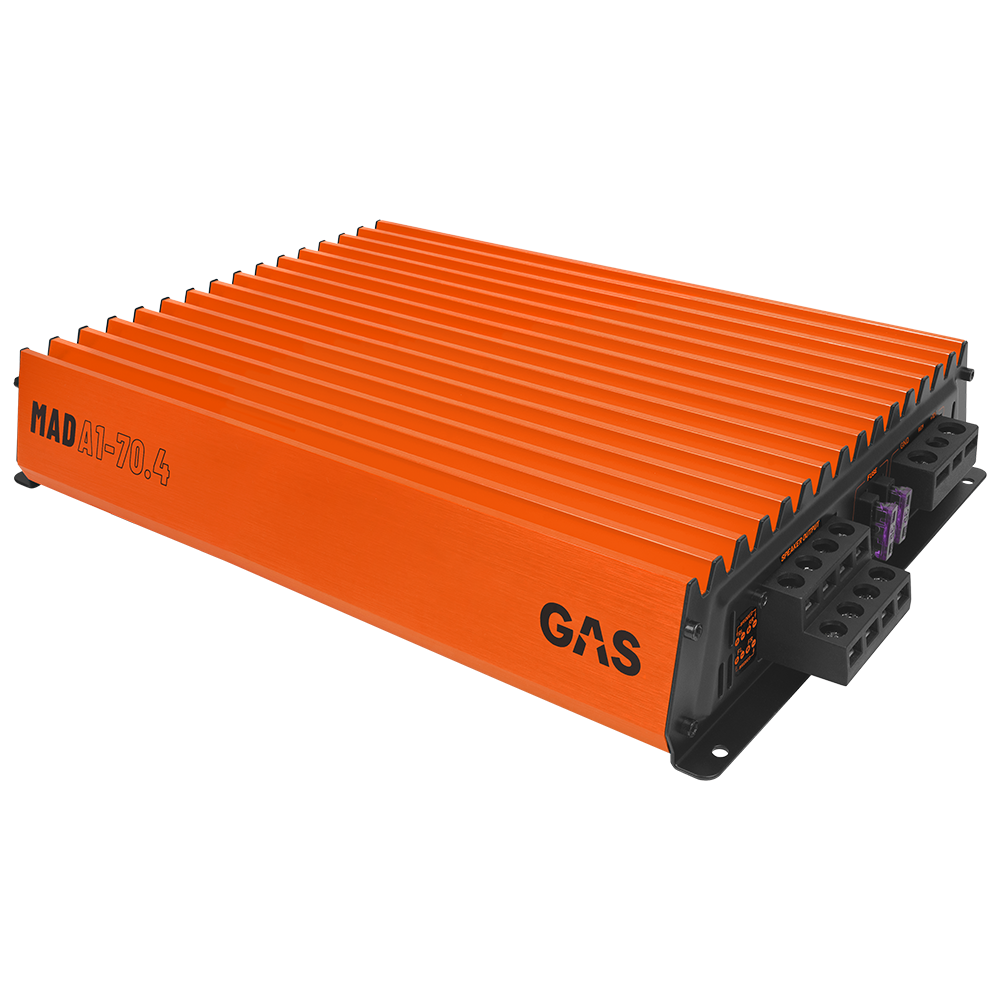

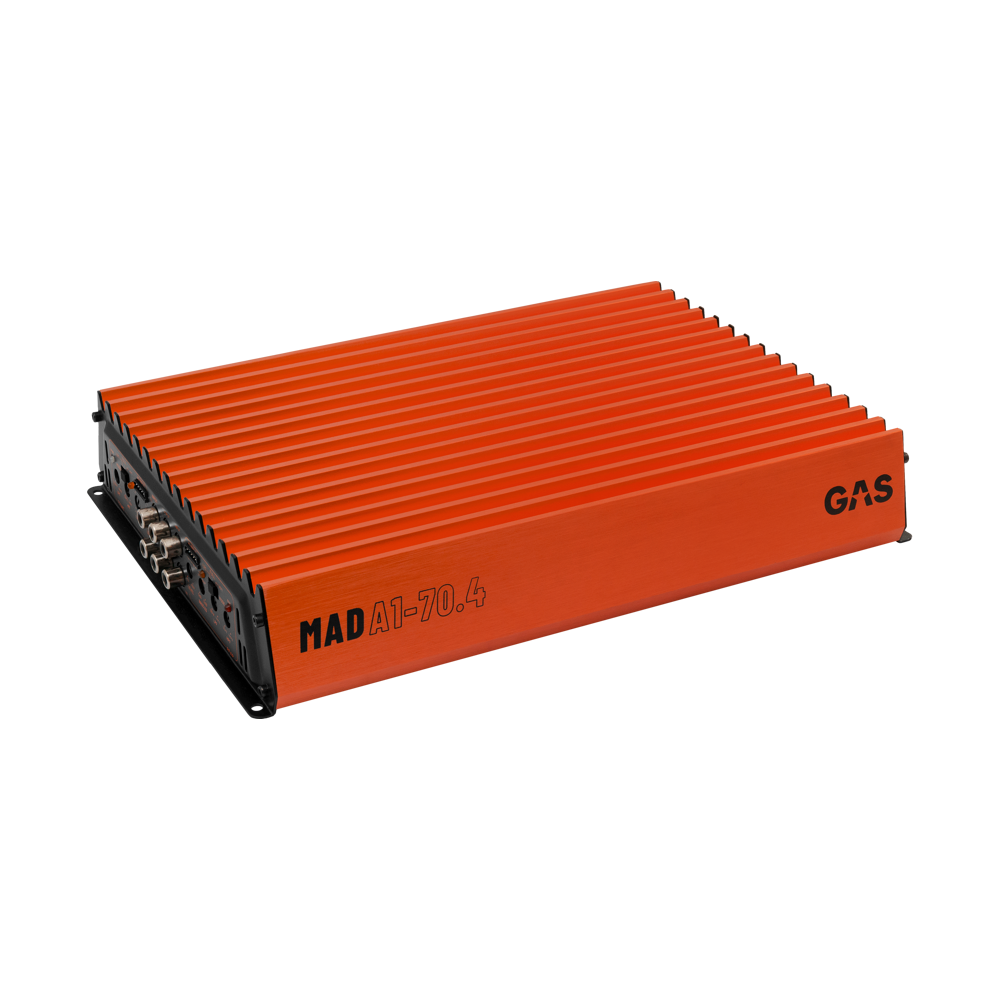

MAD A1-70.4

MAD A1-70.4

Trade in your sanity and go fully MAD with the A1 series amplifiers!

MADA1704

Description

MORE IS ALWAYS BETTER

We’re always chasing the high you get from gut-punching powered speakers. To keep the LOUD level high and the heat low, the MAD A1-70.4 features a custom A-Star heat sink chassis with an increased cooling area. Less material, same efficiency, and an awesome look to top it off.

LEAVE THE HATERS WANTING

We know how it is. You want to install your amplifier as fast as possible so you can go out and show the world how LOUD your sound system can be. Don’t worry, we got you covered – how about a CLIP function for easy installation that helps you to know when 1% distortion is reached? AND the latest high level input technology with ATO, automatic turn on. You’re welcome!

PRECISION CONTROL

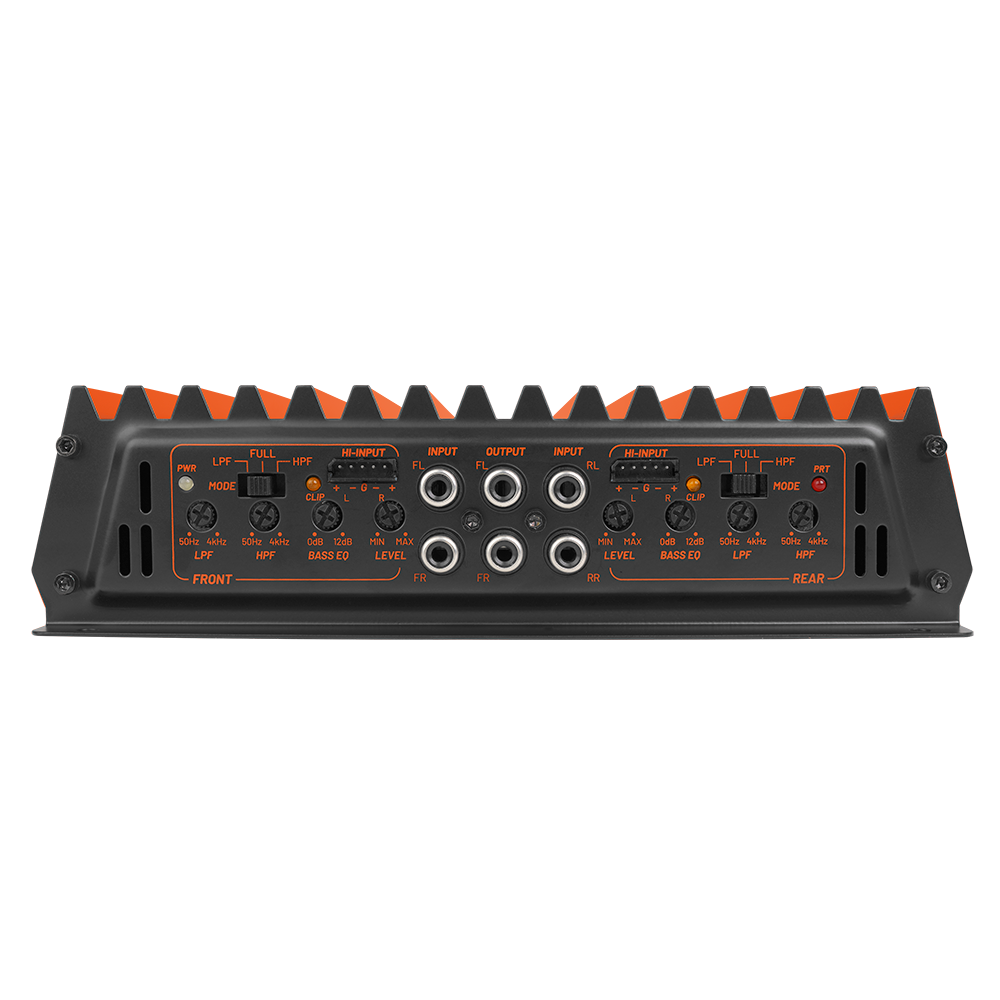

What’s the difference between your sound system and the rest? Control! The MAD A1-70.4 give you LPF and HPF 12dB crossover slopes with a wide range of features. Build the system of your dreams, the choice is yours – but make sure to make it LOUD!

SAFETY FIRST

If you’re a bit trigger happy, things might take a turn for the worse. This is something you want to avoid, right? To make sure your sound system can handle it, we’ve introduced state of the art protection circuits. This minimizes the risk of DC, thermal overloading and shorting issues!

Additional information

Component

Amplifier

Channels

Four

Power RMS (2 Ohm)

4x105W

Power RMS (4 Ohm)

4x70W

Bridged Power RMS (4 Ohm)

2x220W

Freq. response

15-22.000 Hz

Low Pass Filter

50-4.000 Hz

High Pass Filter

50-4.000 hz

S/N Ratio (A-weighted)

>98 dB

Bass EQ

0-12dB @45Hz

Crossover Slope

12 dB

Power Voltage

10-16V

REM Voltage

10-16V

Input Sensitivity

0.5-6V

T.H.D

<0.5%

Power Fuse

2x35A

Damping Factor

>130

High Level Input

Yes

RCA Line Out

Yes

Product Manual MAD A1-70.4

Download

User manual for MAD A1-70.4.
