MAD A2-1200.1DFL

MAD A2-1200.1DFL

Trade in your sanity and go fully MAD with the A2 series amplifiers!

MADA212001DFL

Description

READY FOR LOUD

Trade in your sanity and go fully MAD with the A2 series amplifiers. We’ve made some “cool” choices when it comes to ventilation, like a custom heavy and extremely strong heat sink, while also increasing the side panel gap to let air pass unrestricted underneath the amplifier – even at difficult mounting conditions. We’ve also implemented a 2-layer PCB for more power and increased reliability. This is MADNESS taken to the next level!
LEAVE THE HATERS WANTING
Inspired by the near-perfect MAX series amplifiers, we decided there was one feature we just had to include in the MAD series amplifiers: the balanced differential inputs, which means less noise – and better sound. The powerful Class D amplifier topology makes sure the A2-1200.1DFL delivers crazy amounts of power and a smooth sound. This is a full range amplifier, so throw everything you got at it. Tweeters, midrange speakers or subwoofers – no problem! We got your back, so go out there and make us proud!

SOMETHING FOR EVERYONE

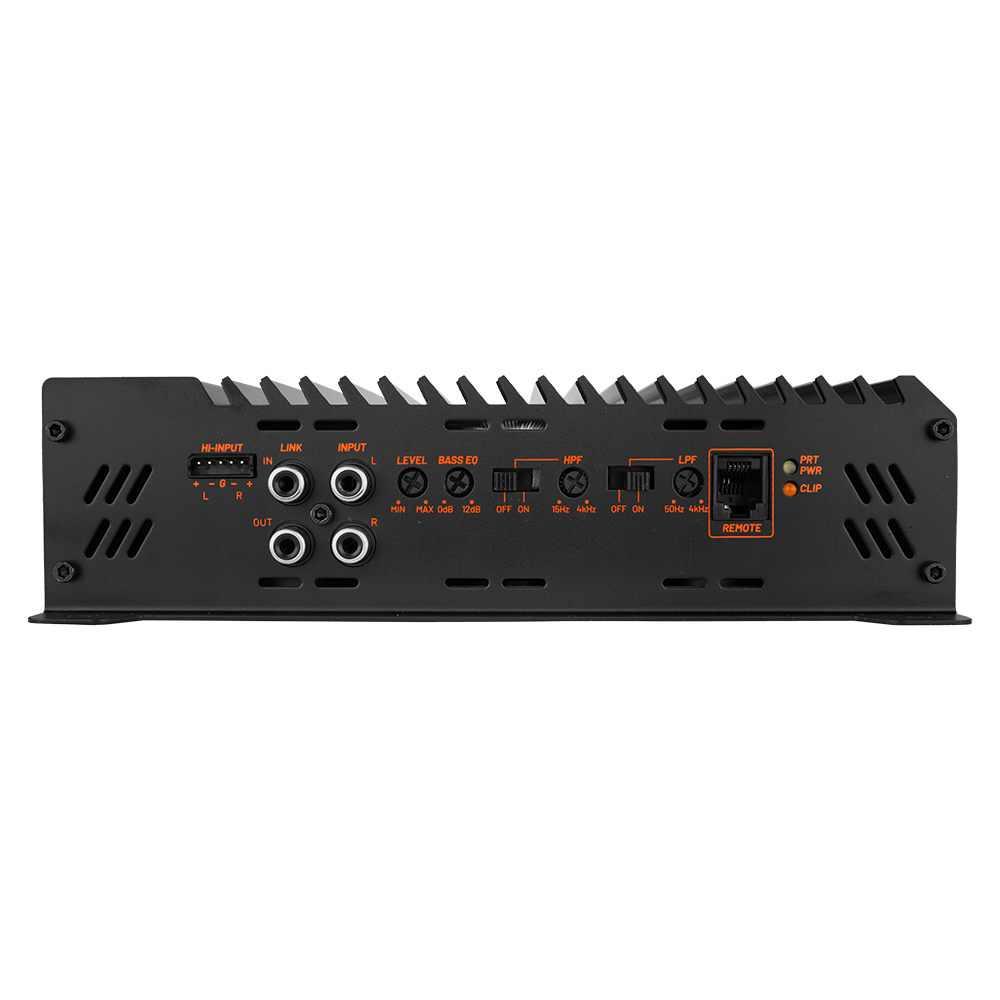

What’s the difference between your sound system and the rest? Well, aside from awesome amounts of power… Control, of course! We gave the MAD A2 series HPF and LPF 12 db crossovers with a wide range of features. Build the system of your dreams, the choice is yours – but make sure to be as LOUD as you possibly can!

MAKING IT LOOK EASY SINCE 1997

You want to install this amplifier as fast as possible, and we’re all about making it easier for you. How about a CLIP function that helps you know when 1% distortion is reached? We’ve also added the latest high level input technology with ATO, automatic turn on, and a bass remote so you can tweak your system on the go.

SAFETY FIRST

If you’re a bit trigger happy, things might take a turn for the worse. This is something you want to avoid at all costs, right? Just for this reason, we’ve introduced state of the art protection circuits. This minimizes the risk of DC, thermal, overloading and shorting issues!

Additional information

Component

Amplifier

Channels

One

Input mode

Mono

Power RMS (1 Ohm)

1x1200W

Power RMS (2 Ohm)

1x800W

Power RMS (4 Ohm)

1x480W

Freq. response

15-20.000 Hz

Low Pass Filter

50-4.000 Hz

S/N Ratio (A-weighted)

>95dB

Bass EQ

0-12dB @45Hz

Crossover Slope

12 dB

Power Voltage

11-16V

REM Voltage

11-16V

Input Sensitivity

0.5-6V

T.H.D

<0.2%

Power Fuse

3x45A

Damping Factor

> 130

RCA Line Out

Yes

Product Manual MAD A2

Download

User manual for MAD A2 (A2-600.1DFL & A2-1200.1DFL)

Datasheet MAD A2-1200.1DFL

Download

Datasheet for MAD A2-1200.1DFL.
