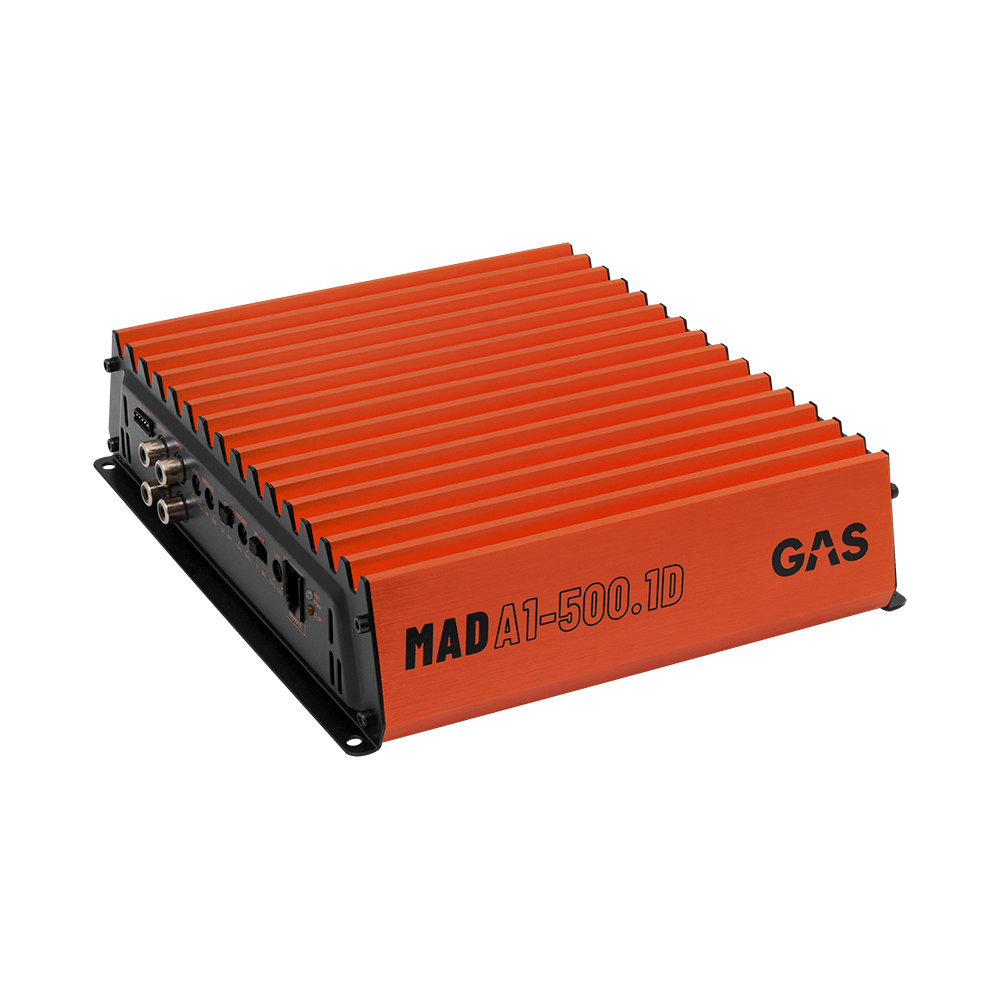

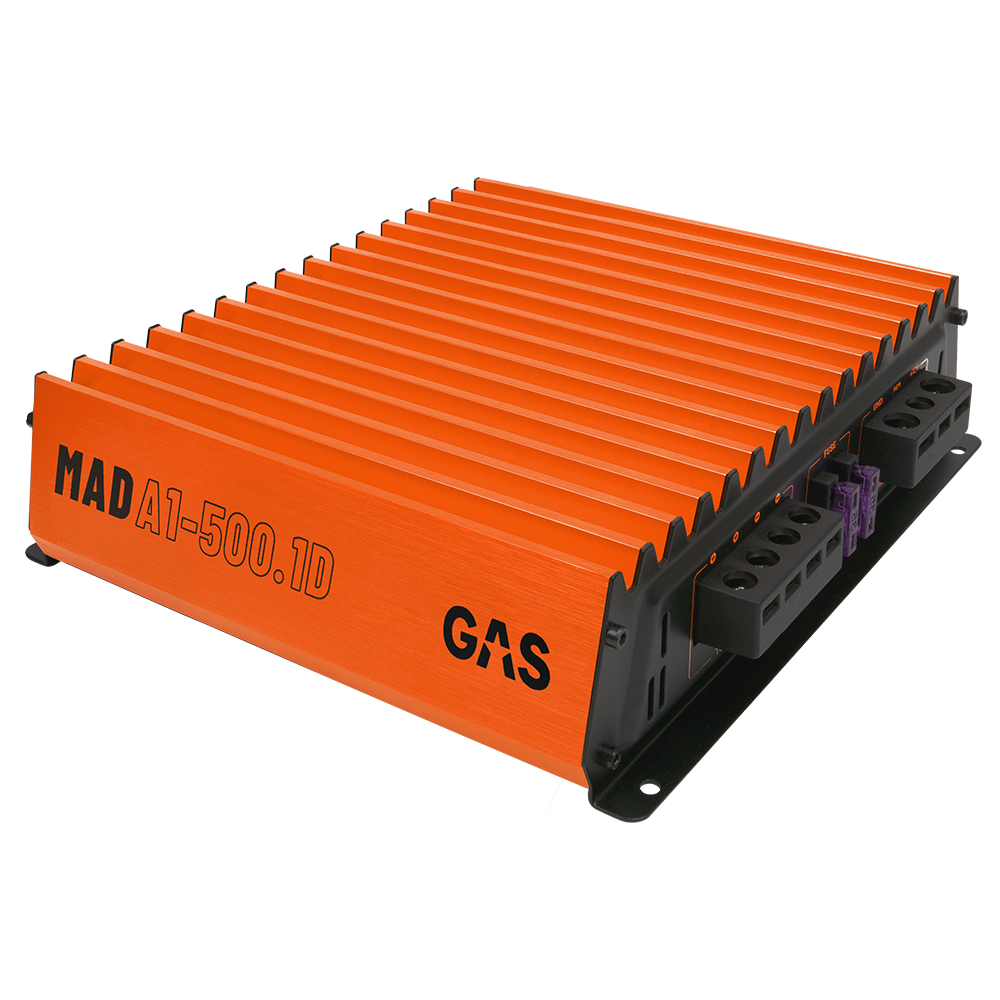

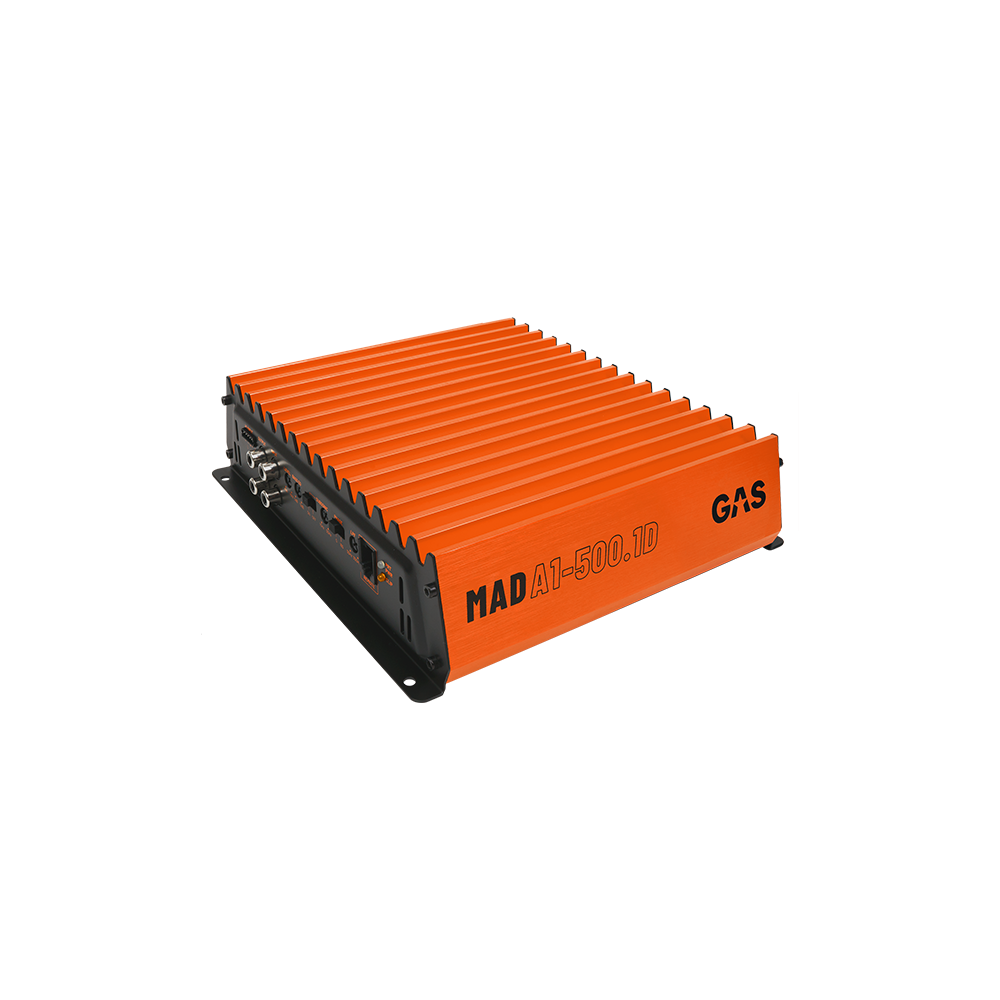

MAD A1-500.1D

MAD A1-500.1D

Trade in your sanity and go fully MAD with the A1 series amplifiers!

MADA15001D

Description

MORE IS ALWAYS BETTER

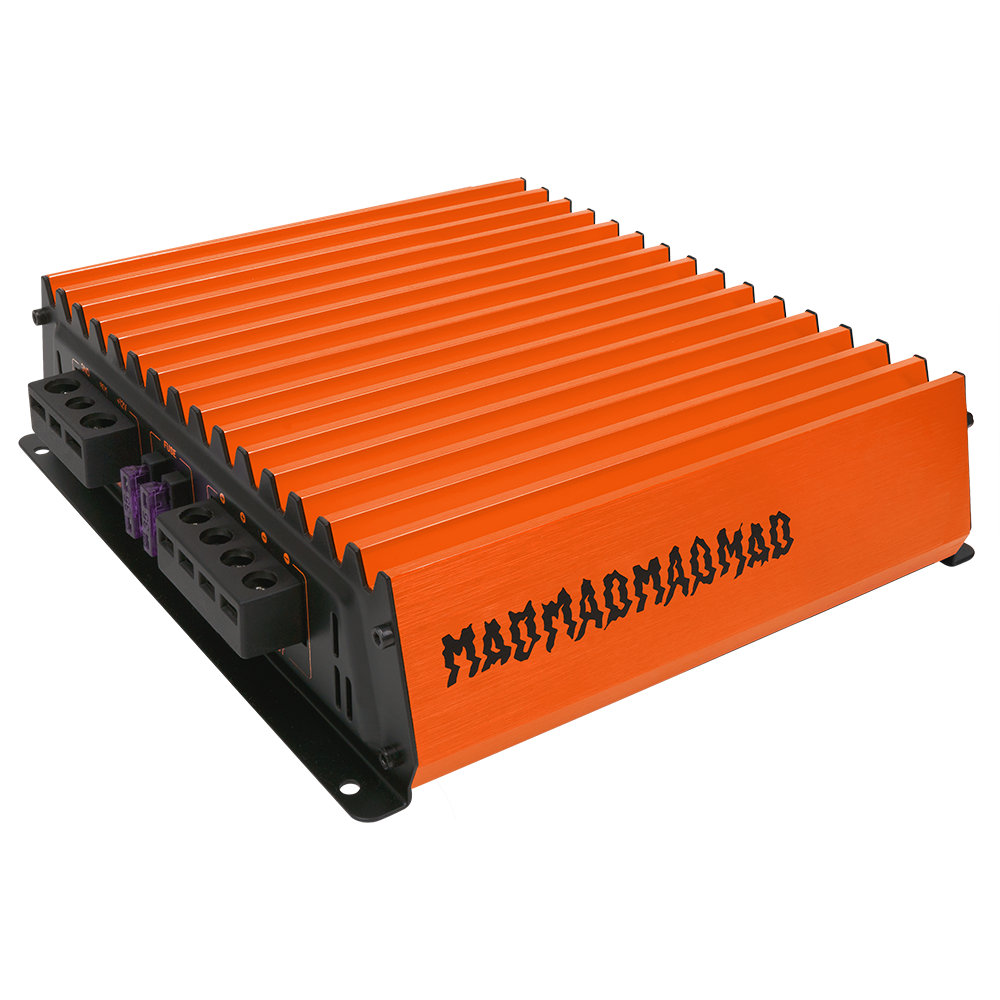

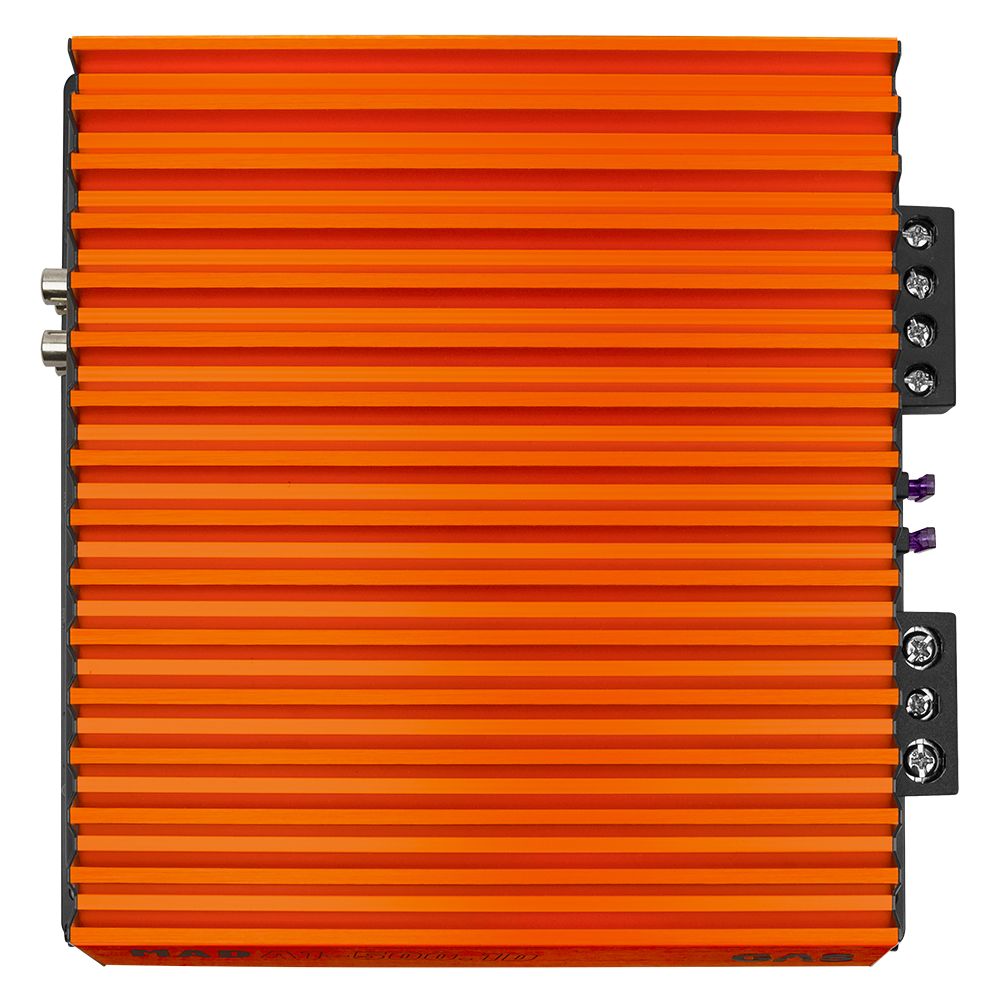

We’re always chasing the high you get from gut-punching bass. To keep the LOUD level high and the heat low, the MAD A1-500.1D features a custom lightweight A-Star heat sink chassis with an increased cooling area. Less material, same efficiency, and an awesome look to top it off.

LEAVE THE HATERS WANTING

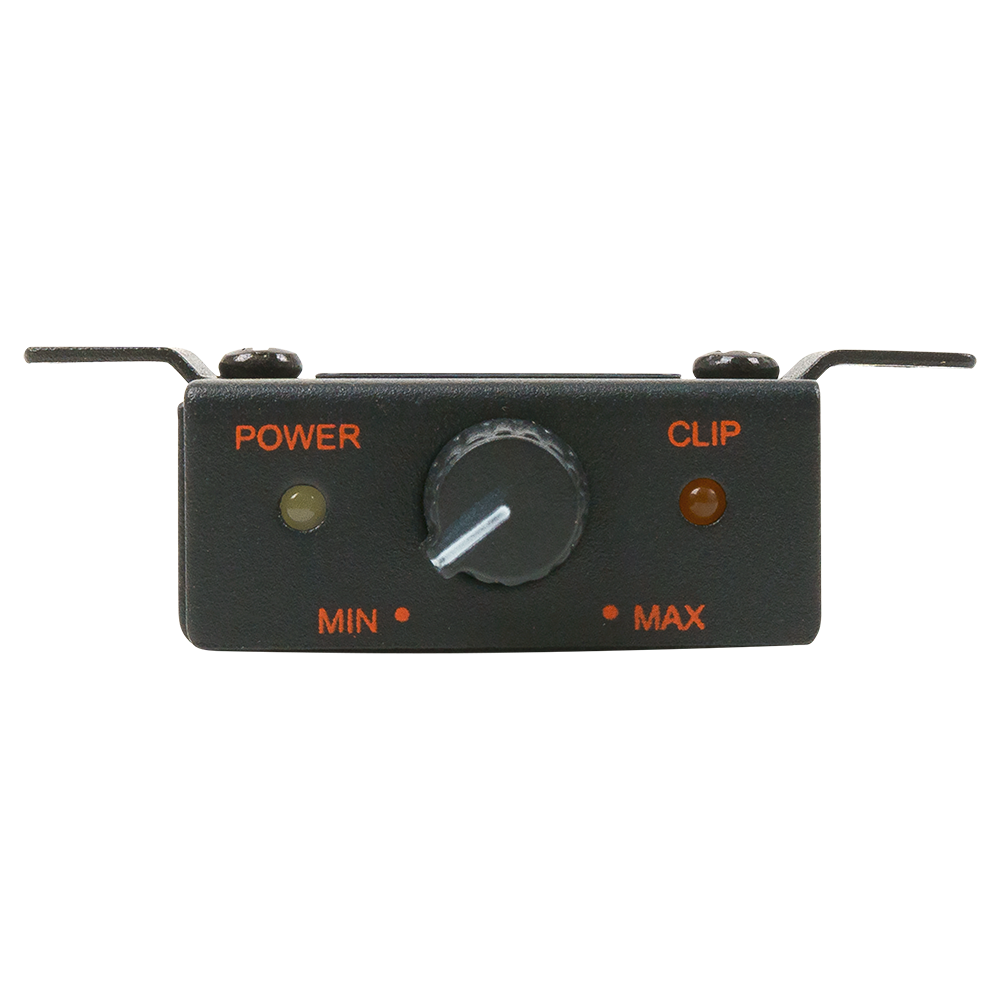

We know how it is. You want to install your amplifier as fast as possible so you can go out and show the world how LOUD your sound system can be. Don’t worry, we got you covered – how about a CLIP function for easy installation that helps you to know when 1% distortion is reached? We’ve even included a CLIP indicator on the bass level remote, AND the latest high level input technology with ATO, automatic turn on. You’re welcome!

PRECISION CONTROL

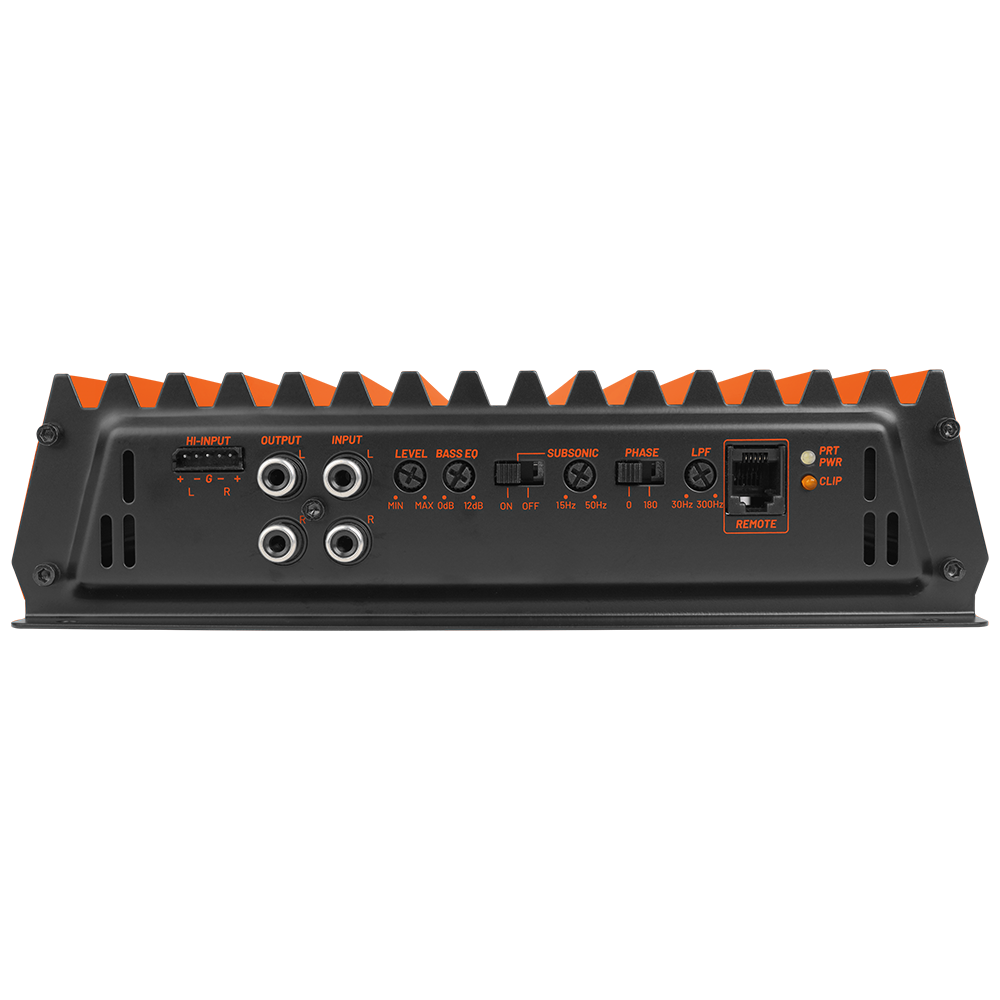

What’s the difference between your sound system and the rest? Control! The MAD A1-500.1D give you LPF and subsonic 12dB crossover slopes as well as a 0/180 phase shift. Build the system of your dreams, the choice is yours – but make sure to make it LOUD!

PRECISION CONTROL

If you’re a bit trigger happy, things might take a turn for the worse. This is something you want to avoid, right? To make sure your sound system can
handle it, we’ve introduced state of the art protection circuits. This minimizes the risk of DC, thermal overloading and shorting issues!

Additional information

Component

Amplifier

Channels

One

Input mode

Mono

Power RMS (1 Ohm)

1x500W

Power RMS (2 Ohm)

1x370W

Power RMS (4 Ohm)

1x230W

Freq. response

15-300 Hz

Low Pass Filter

30-300 Hz

S/N Ratio (A-weighted)

>92dB

Bass EQ

0-12dB @45Hz

Crossover Slope

12 dB

Power Voltage

10-16V

REM Voltage

10-16V

Input Sensitivity

0.5-6V

T.H.D

<0.05%

Power Fuse

2x35A

Damping Factor

> 130

RCA Line Out

Yes

Product Manual MAD A1-500.1D

Download

User manual for MAD A1-500.1D.
